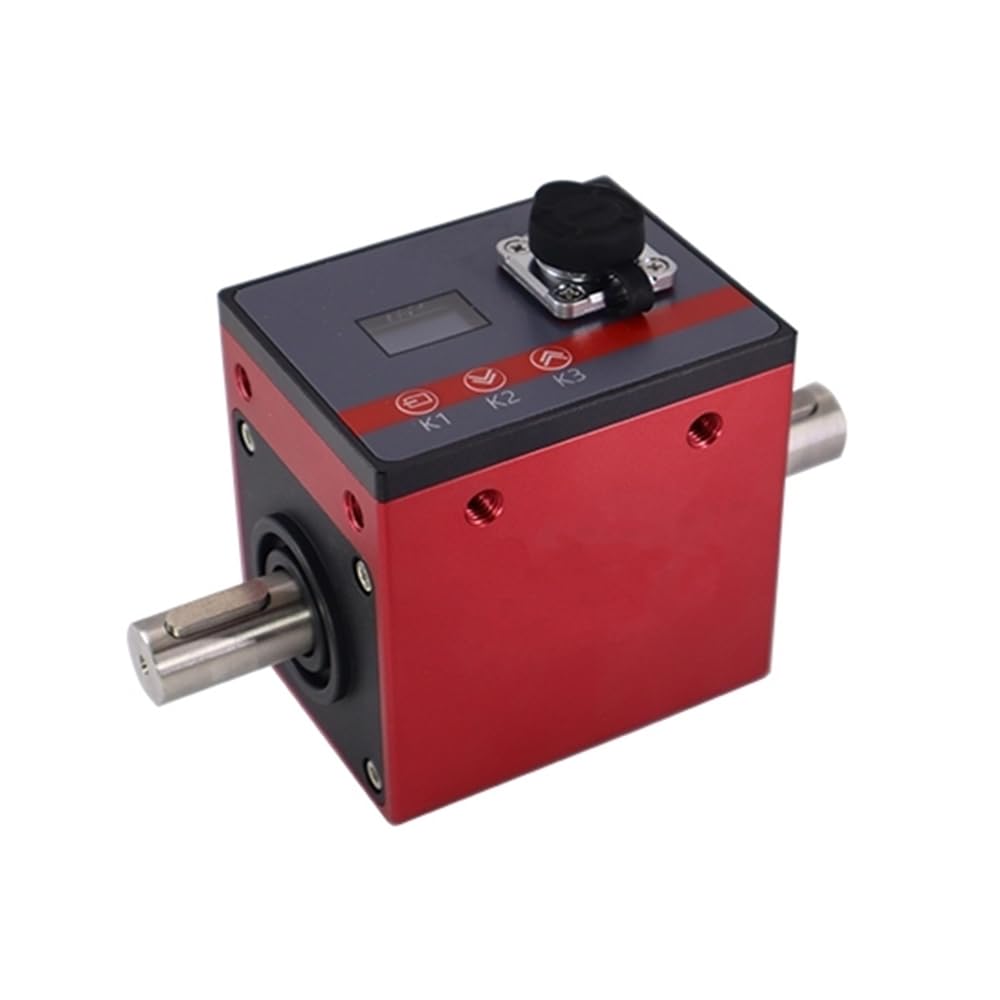

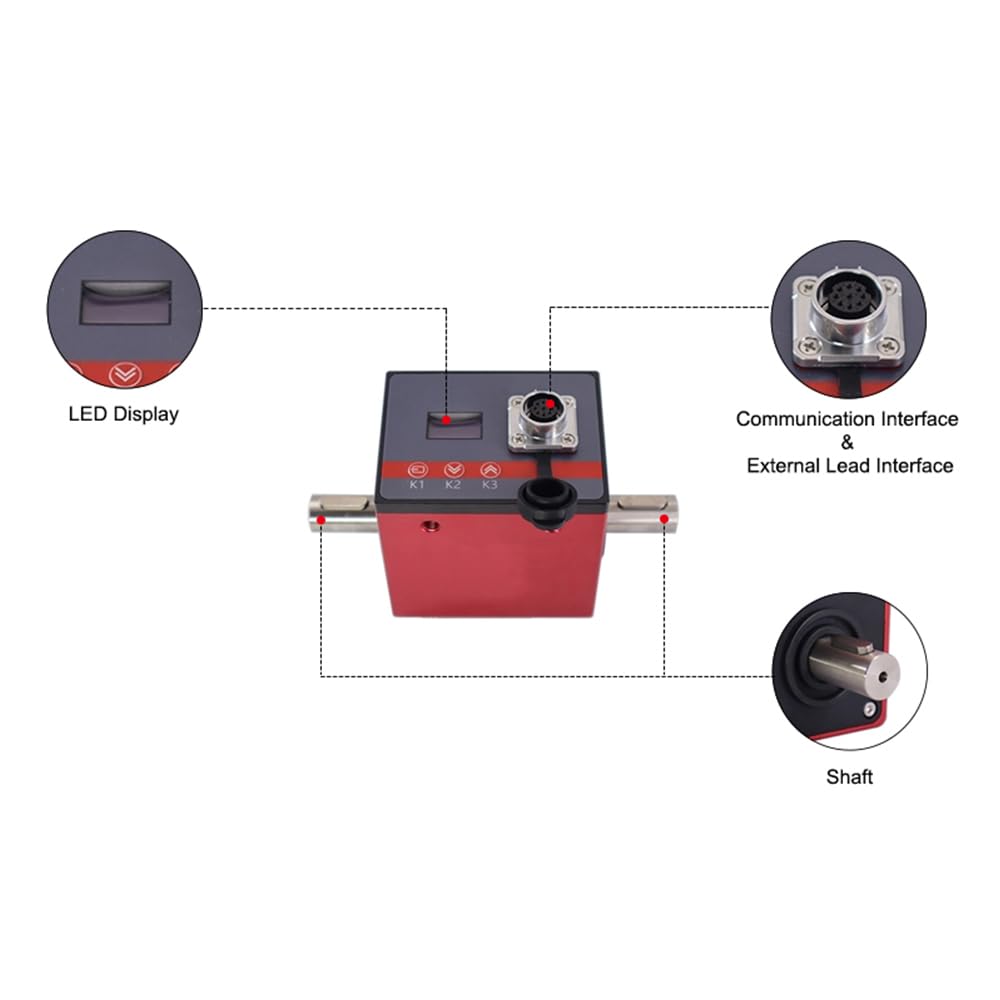

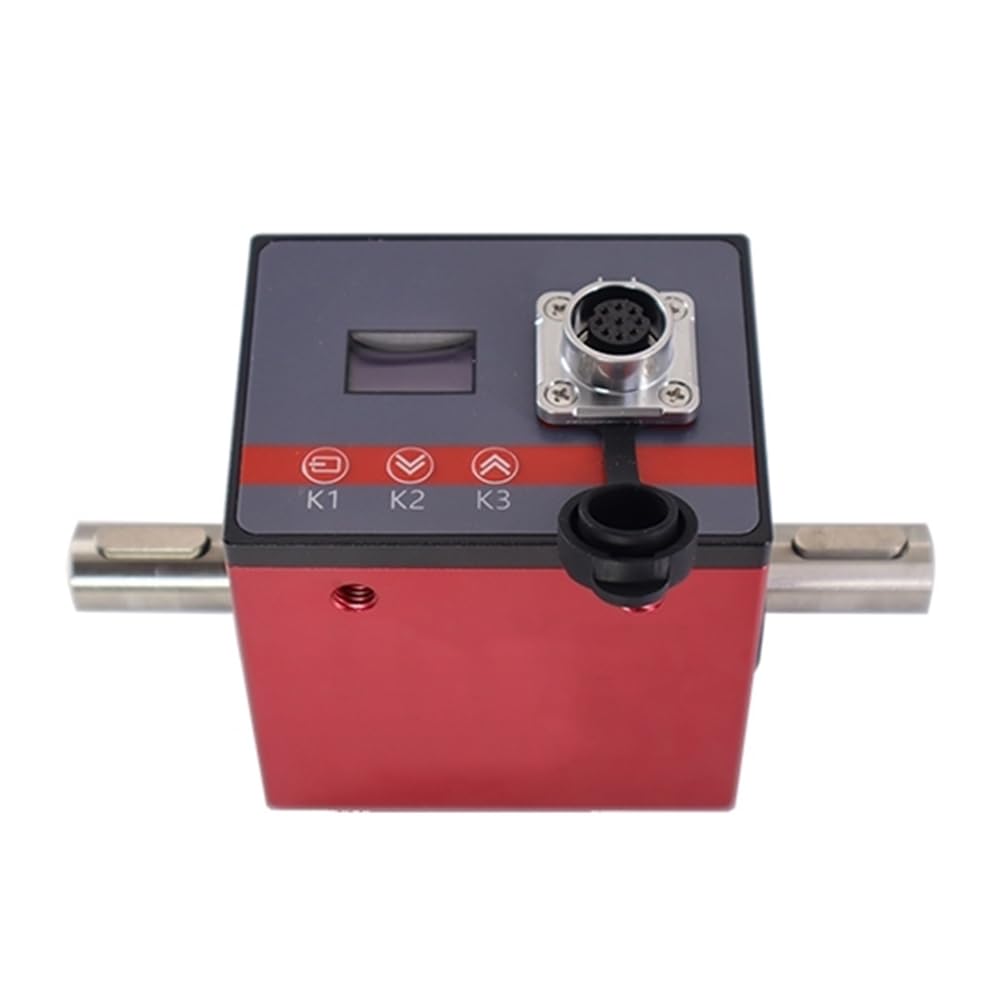

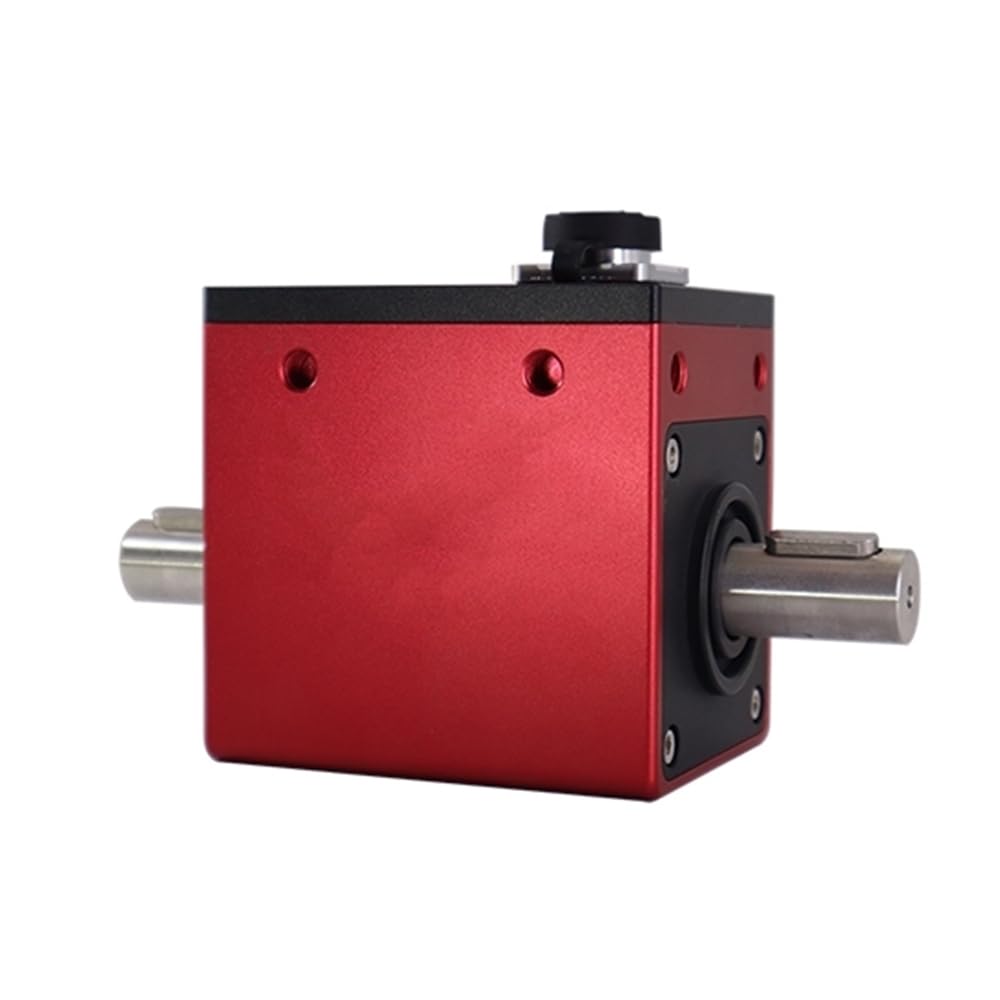

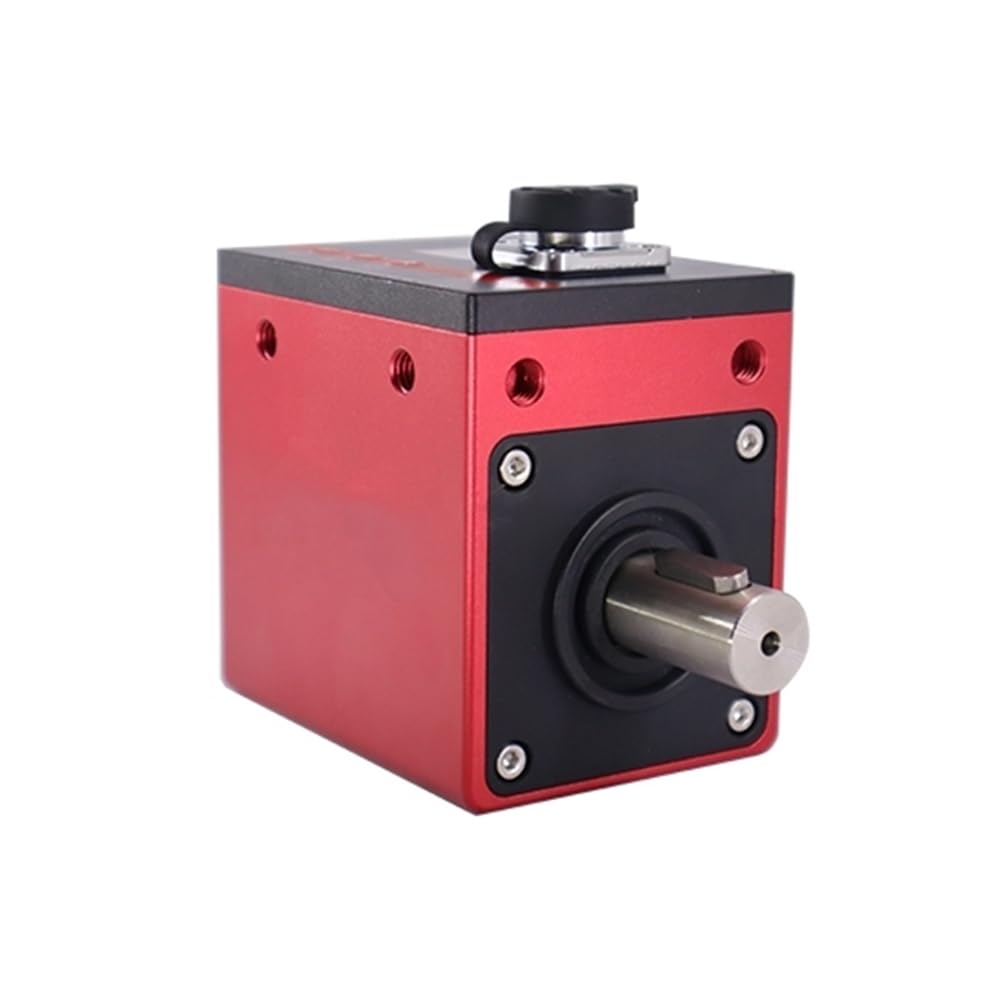

ATO rotary torque transducer with 7 pin waterproof circular connector and 3m cable can measure both forward and reverse torque ATO rotary torque meter can directly output standard signal to PLC DCS and other automation control systems **Output Signal--- 4-20mA
【Lowest Measured Value (Nm)】The non-linearity of ATO Digital non-contact rotary torque sensor : 0.1%FS (Lowest Nm=Accuracy 0.001 * Capacity)
【LCD Display 】Dynamic torque sensor power supply: DC 24V LCD display can show torque speed and power value at the same time
【Starting Torque】DC 24V Rotary torque transducer adopts two NSK shafts to ensure starting torque as low as 0.00001 Nm
【Customer First 】You will be enjoyed to get free tech support on how to choose how to wire how to commissioning with ATO professional engineers. If you have any issue about the product or service please don't hesitate to consult us

ATO is committed to providing customers with good quality and affordable automation products all over the world. ATO has become the choice of more and more business customers.

Yes it does. Our sensor is equipped with an RS485 interface and fully supports the Modbus RTU protocol making it ideal for industrial automation remote monitoring and custom integration.

Absolutely. As long as your setup supports the Modbus RTU protocol you’re free to use your own devices and software. We designed our product to be flexible and integration-friendly.

ATO Strain gauge torque sensor adopts strain electric measurement technology. A strain gauge is attached to the elastic shaft to form a measuring bridge. When the elastic shaft is slightly deformed by torque the resistance value of the bridge will change and the change of strain bridge resistance will change into the change of electrical signal to achieve torque measurement. The sensor completes the following information conversion such as the sensor consists of elastic shaft measuring bridge instrument amplifier and interface circuit.

ATO Rotary torque sensors can be used in the manufacture of viscometers electric (pneumatic hydraulic) torque wrenches. Using strain gauge electrical measurement technology a strain bridge is formed on the elastic shaft and the electrical signal of the elastic shaft being twisted can be measured by supplying power to the strain bridge. After the strain signal is amplified it is converted into a frequency signal proportional to the torsional strain after pressure/frequency conversion.

Our ATO torque sensor can be paired with a Transmitter or Display Controller to output additional signals monitor real-time torque data and enable easy data acquisition for further analysis.

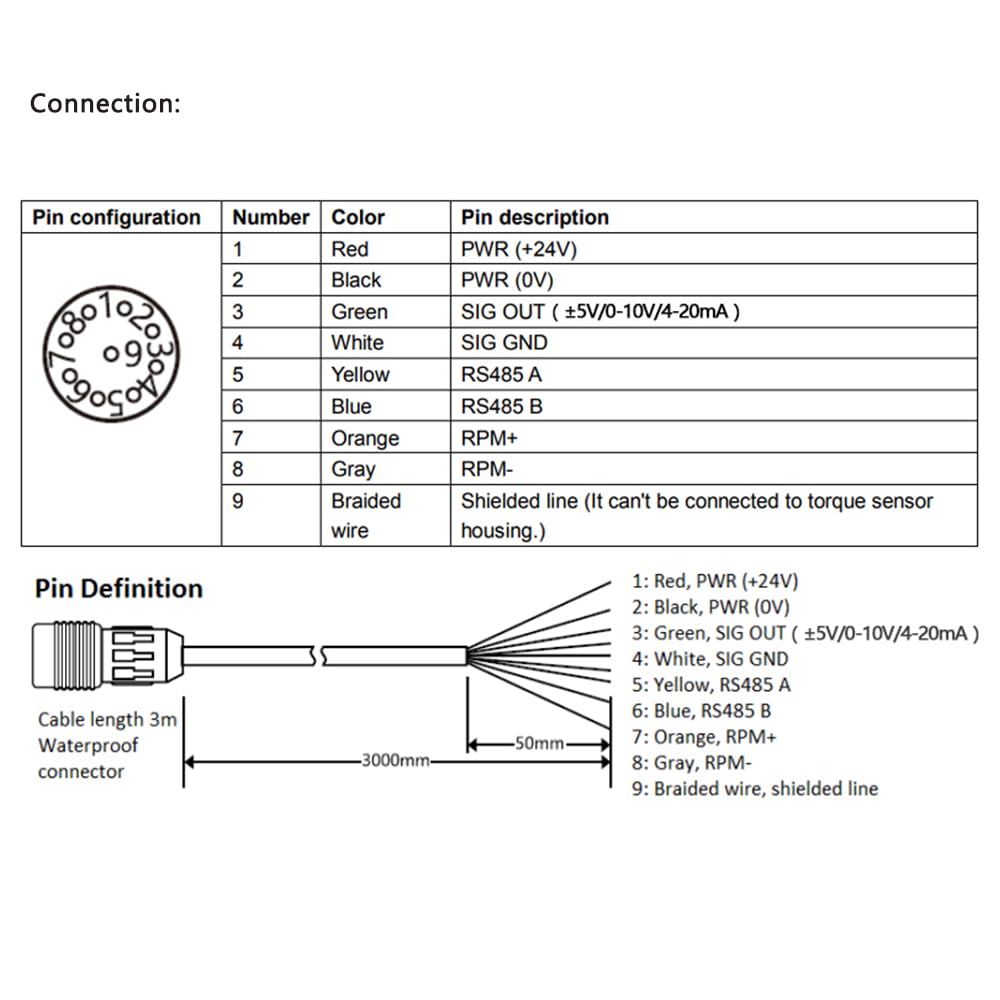

DisplayLCD display (show torque/speed/power value)Non-linearity0.1%FS (Accuracy 0.001 * Capacity=Lowest Nm) Hysteresis0.03%FS Repeatability0.03%FS Temperature drift on zero＜0.01%FS/℃ Temperature effect on output＜0.01%FS/℃ Power supplyDC 24V Consumption current＜150mA Load resistance≥2kΩ Output torque *±5V 0-10V 4-20mA RS485 RS485 & ±5V RS485 & 0-10V RS485 & 4-20mA Software Option*software and USB to RS485 cable is optional if you select you can install software on your computer (Win 8/ Win 10 system) to monitor torque data and graphsOutput speed60 pulse per revolution (OC output is standard configuration and 5V TTL output is optional) Response performance1kHz Signal delay0.6msUltimate overload200%FS Rated speed10000rpm Maximum speed15000rpm Protection gradeIP43 Maximum Deformation0.149°/1Nm at 2.60*10rad (The maximum deformation angle generated by 1Nm at 2.6*10rad rotation arc is 0.149°) Inertia moment0.38x10-4 - 0.35x10-3 kg·cm2 Natural vibration frequency19.4kHz Torsion constant0.833×10Nm - 3602.7×10Nm/rad Elastic element material17-4 stainless steel Operating temperature-10℃~+70℃ (14~158℉) Humidity0~85%RH Electrical connection7 pin waterproof circular connector Cable length3m (Φ5mm)

ATO Business: Industrial Automation

Does this sensor support Modbus RTU communication?

Can I use my own hardware and software with the sensor?

How doesthe ATO Strain gauge torque sensor work?

How doesthe ATORotary torque sensors work?

Tips:

ATO Torque Transducer Applications

ATO Torque Transducer Meter Specification

ATO Rotary Torque Transducer Sensor Dimension (unit: mm)
